Checking Fixture

Get in Touch Know More

Checking Fixture

  • Exterior Parts Checking Fixture
  • Interior Parts Checking Fixture
  • Engine Parts Checking Fixture
  • Gauges
  • EOAT Fixture

Export Quality Checking Fixture

All types of Export quality fixture, Checking fixture ,EOAT fixture, Welding Fixtures, Assembly fixtures and all other industrial fixtures and jigs capablites to manufature.

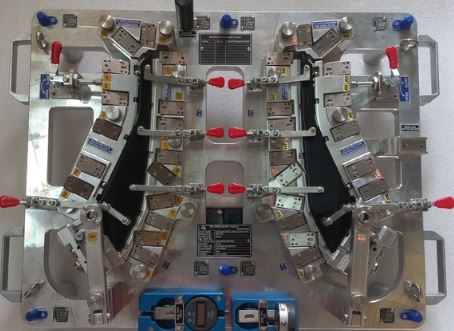

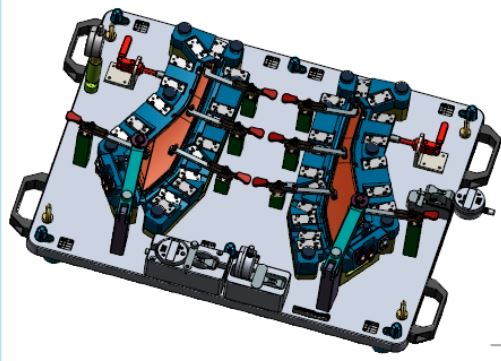

WHAT IS CHECKING FIXTURE ?

A checking fixture is a quality assurance tool used in industries to check for the quality of components with complex shapes. They aren’t used in making components but to accept or reject already made components according to the dimensional accuracy. Manufacturers seek the help in checking fixtures to inspect the dimensional accuracy of their products. They also inspect components for distortion, scratches and check whether the parts are properly aligned. In short, a checking fixture provides a certification that the product satisfies all the requirements for a safe operation.

A checking fixture is similar to a gauge except that it can hold the part it measures. It can accommodate any number of gauging devices while holding the part to be inspected.

Technologies

Exterior

Interior

Engine

Gauges

EOAT Fixture

Fixture

Materials

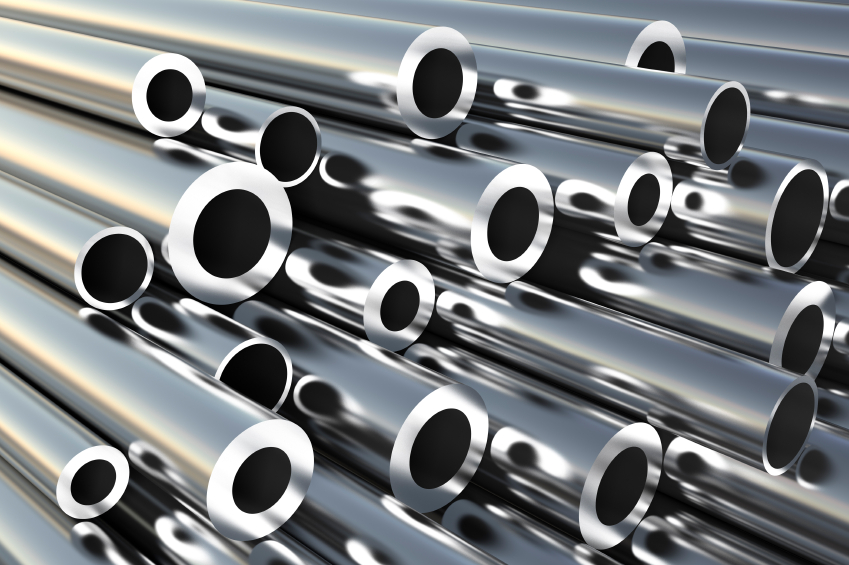

ALUMINIUM

ALUMINIUM

Surface Finishing

Anodizing Powder Coating

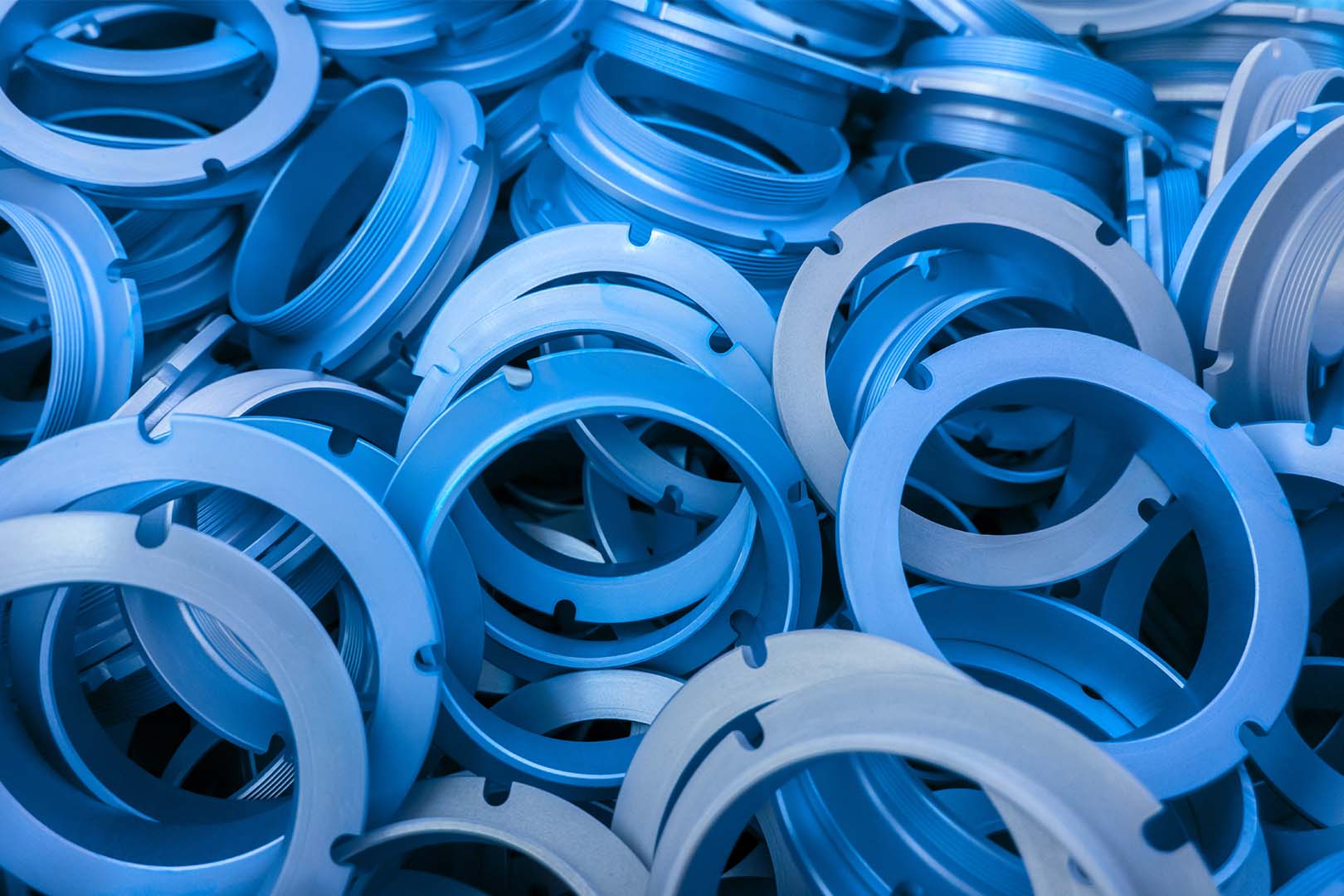

Anodizing

Anodizing is an electrolytic passivation process that grows the natural oxide layer on the surface of metal parts for protection from wear and corrosion, as well as for cosmetic effects.

Colour : Clear, Black, Grey, Blue, Red, Custom Requirements

Texture : Smooth matte finish

Applicable Material : Aluminium

Lead Time : 2 – 4 days depending on the types

Powder Coating

Powder Coating is used to provide a strong wear resistant finish which does not need a solvent for its operation.

Colour : All RAL and Pantone shades

Texture : Gloss, Semi-Gloss

Applicable Material : Aluminum, SS, MS

Lead Time : As fast as 2 days
